How do I set up the Gmail complaint feedback loop?

Provider Deliverability Guides
Gmail feedback loop setup, Google Postmaster Tools setup, Gmail complaint feedback loop, Gmail FBL registration, Gmail spam complaint data, Google Postmaster domain verification
Quick Answer
To set up Gmail’s complaint feedback loop, verify that SPF, DKIM, and reverse DNS are configured, then register and verify your domain in Google Postmaster Tools. Add a Feedback-ID header to your outgoing emails with a 5–15 character sender identifier — without it, Gmail will not report campaign-level complaint data. The FBL provides aggregate spam rate and reputation trends, not individual complaint messages.

Gmail’s Feedback Loop (FBL) is a reporting feature in Google Postmaster Tools that surfaces aggregate reputation data for your sending domain — including spam complaint rates, domain reputation scores, and authentication status. Unlike traditional FBLs, it does not forward individual complaint messages or identify specific problematic sends; instead, it provides high-level trend data to help you monitor sending health over time.

How Providers Report Complaints

Gmail, Yahoo, and Microsoft each handle spam complaints differently. This diagram compares all three feedback mechanisms side by side.

Who is this relevant for?

Postmaster data is useful for any sender targeting Gmail, but it is not essential for lower-volume mailers. Google requires senders to exceed an undisclosed volume and spam complaint threshold before data becomes available.

How does Gmail Feedback Loop Help?

The Gmail FBL gives insight into your campaigns that might receive an extremely high number of spam reports from Gmail users.

Setup Requirements

In order to setup the Gmail FBL there are a few steps involved.

Pre-Check

Before you start, ensure you have setup and validated SPF, DKIM, and ReverseDNS settings. If these are not configured correctly, you will not be able to complete the FBL setup.

First, sign up with Gmail’s Postmaster tools. You can follow Google’s help to create your postmaster account. You will be asked to validate domain ownership so be sure to have the ability to add a TXT record to your DNS settings.

Google Search Console domain verification dialog showing TXT record value and Verify button.

Google also has a list of best practices for described in their Gmail Bulk Sender guidelines.

Second, to implement the feedback loop, Gmail requires that you insert a special header called the Feedback-ID. It is necessary to add this Feedback-ID line in your email header and the method varies depending on what ESP or SMTP provider you are using for sending. If you don’t know how to set this, you will need to find the instructions from your vendor.

The header format should look as follows. You will always use the same SenderID and can vary the first three identifiers to align with your campaign. FBL data will be aggregated on each Identifier independently. This format also allows for the use of less than the 3 Identifiers, if needed.

Feedback-ID: a:b:c:SenderID
FieldDescription
a, b, cOptional fields that can be used by the sender to embed up to 3 Identifiers (campaign/customer/other). These identifiers may change based on the attributes you wish to track.
SenderIDMandatory unique Identifier (5–15 characters) chosen by the sender. It should be consistent across the mail stream.

Examples of identifiers could be:

  • campaign names or IDs
  • segment names or IDs (new customer, etc)
  • mail type names (newsletter, DRIP, notification, transactional, etc)
  • customer types
Example
cid-2343:sid-3454::example-co
holiday33::new-customers:example-co

Data will not display if the SenderID is missing

Postmaster Dashboards

The most important indicators that Gmail’s Postmaster tool offers is the opportunity to track the percentage of spam complaints by domain name or sub-domain on a daily basis.

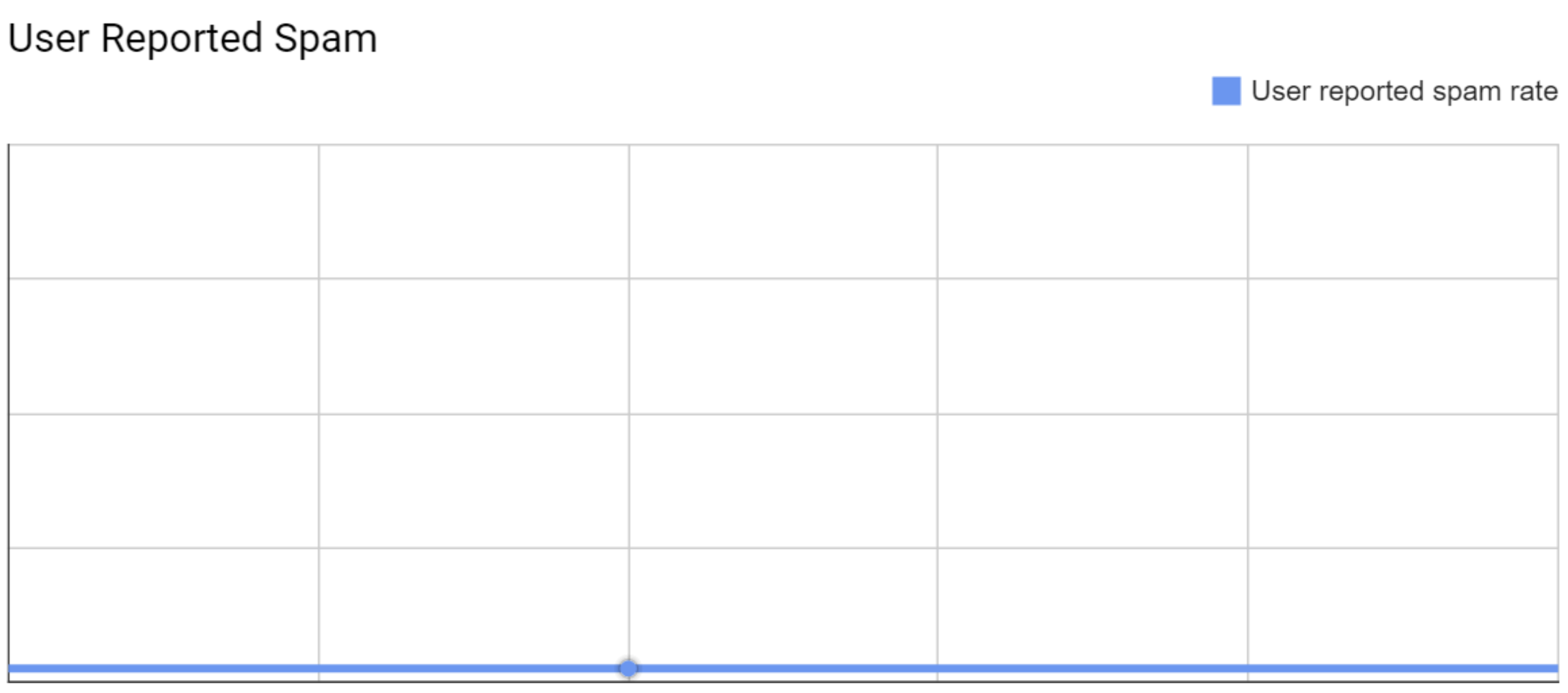

Line chart titled “User Reported Spam” showing user reported spam rate near zero.

The full list of reports are described in the table below.

ReportDescription
Spam RateThis is one of the most important indicators that Gmail’s Postmaster tool offers. It gives you the opportunity to track the percentage of spam complaints by domain name or sub-domain on a daily basis.
IP ReputationThe reputation of IPs on Gmail is: Bad, Low, Medium and High.
Domain ReputationThe reputation of domains on Gmail is: Bad, Low, Medium and High.
Feedback LoopIf you have correctly configured your Feedback-IDs, you can see the segments broken out to easily detect the sources of complaints in relation to your sending.
AuthenticationThis dashboard shows the percentage of emails that have been validated through the different authentication technologies like SPF or DKIM.
